Vertical edge polishing machine for high working volume with automatic compensation of piece thickness tolerance.
FEED UNIT
The design of the feed unit belts makes it possible
to mill workpieces with different material thicknesses.
For example, to compensate the material tolerance
of cast material.
ERGONOMIC CONTROL PANEL
All control elements are positioned on
a sloped surface that is easily accessible and readable.
AUTOMATIC STABILIZATION OF THE WORKPIECES
The machine is designed so that high
workpieces always are sopperted on the vertical
back support to avoid steps or marks on the
polished surface.

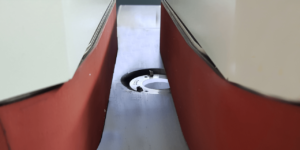

AERODYNAMIC PROTECTION COVER
The aerodynamic design of the protective
cover of the tool allows fast and effective removal
of the milling chips.
MILLING / POLISHING TOOLS
A selection of more than 40 tools allows
processing of plastics (PMMA, PC, PET-G, SAN, etc.) or
composite materials (PMMA with aluminum or paper).
As well as the production of high gloss, shiny or satin
finished surfaces. With the tools of the type HIGH SPEED
you can increase the feed rate up to 200%.
TECHNICAL DATA
|
Material thickness (mm) |
2 … 70 |
|
Material length (mm) |
unlimited |
|
Milling spindle power (kW) |
1,5 |
|
Power of feed motor (kW) |
0,8 |
|
Machine length (mm) |
1.500 |
|
Machine width (mm) |
900 |
|
Machine height (mm) |
1.300 |
|
Work table height (mm) |
926 |
|
Weight (kg) |
400 |
|
Feed speed (m/min) |
0,1 … 5,0 |
|
Cutting speed (rpm) |
8.000 … 18.000 |
|
Milling depth (mm) |
0,5 |
|
Voltage / Frequency (V / Hz) |
230 V 50 Hz |
|
Vacuum cleaner interface diameter (mm) |
80 |
|
Total power (kW) |
2,3 |
|
Included tool |
High gloss – code BLUE |
