Description
Model No.: JMCZJJG(3D)170200LD
Introduction:

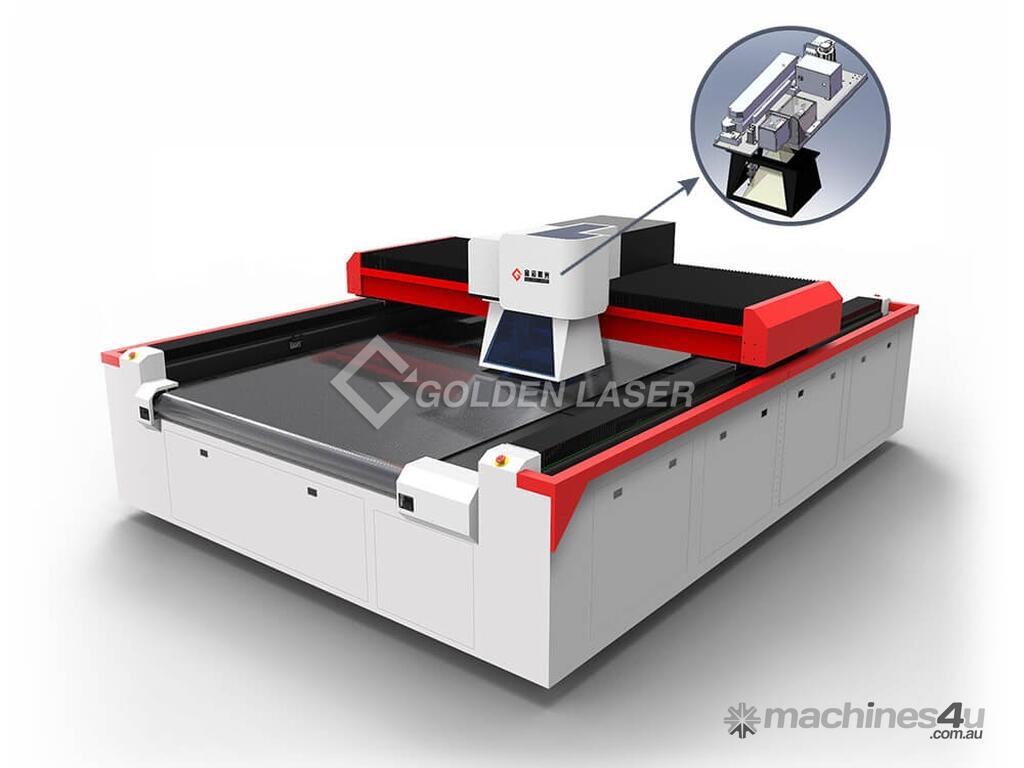

This CO2 laser system combines galvanometer and X-Y gantry, sharing one laser tube.
The galvanometer offers high speed engraving, marking, perforating and cutting of thin materials, while X-Y Gantry allows processing of larger profile and thicker stock.
It is a real versatile laser machine!
JMCZJJG(3D)170200LD Galvanometer Laser Engraving Cutting Machine Technical Parameter
Laser type : Co2 RF metal laser tube
Laser power : 150W / 300W / 600W
Cutting area : 1700mm × 2000mm (66.9? × 78.7?)
Working table : Conveyor working table
No-load max speed : 0-420000mm/min
Positioning accuracy : ±0.1mm
Motion system : Offline servo system, 5 inches LCD screen
Cooling system : Constant temperature water-chiller
Power supply : AC220V ± 5% / 50Hz
Format supported : AI, BMP, PLT, DXF, DST, etc.
Standard collocation : 1 set of 1100W top exhaust fan, 2 sets of 1100W bottom exhaust fans
Optional collocation : Auto-feeding system
*** Note: As products are constantly updated, please contact us for latest specifications. *
